Pre Catalytic Converter

Fig 1: PRE-CATALYTIC CONVERTER

Courtesy of CHRYSLER LLC

1 - TURBOCHARGER

2 - GASKET

3 - CLAMP BOLT

4 - CLAMP

5 - PRE-CATALYTIC CONVERTER

6 - BRACKET

7 - BOLTS

Position gasket on turbocharger
Position pre-catalytic converter (5) to turbocharger (1).
Install bracket (6) and mounting bolts (7). Do not torque at this time.
Install clamp (4) and clamp bolt (3). Hand tighten clamp bolt (3) at this time.
Insure clamp (4) is seated on both turbocharger and pre-catalytic converter. Tap clamp (4) if necessary.
While holding pressure on the clamp toward the turbocharger, tighten clamp bolt (3) to 15 N.m (8.8 in. lbs.).

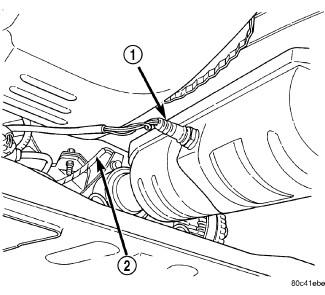

Fig 2: Downstream 1/2 Oxygen Sensor - Typical
Courtesy of CHRYSLER LLC

1 - DOWN STREAM O2 SENSOR

2 - UP STREAM O2 SENSOR
Install catalytic converter. See Exhaust System/CONVERTER, Catalytic - Installation
Connect oxygen sensor electrical connectors (1, 2).
