Instrument Cluster (Service Information): Installation: Installation

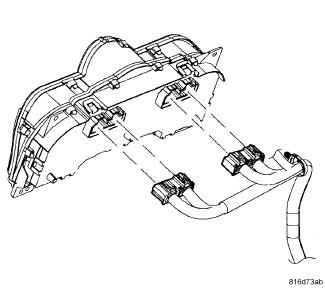

Fig 1: Remove/Install Electrical Connectors

Courtesy of CHRYSLER LLC

1. Align the cluster in the instrument panel opening. Connect the four electrical connectors.

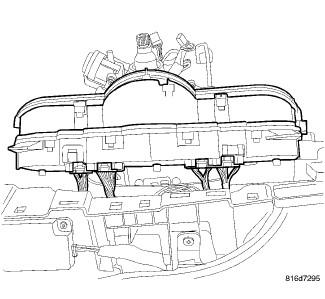

   Fig 2: Locating Cluster Electrical Connectors

   Courtesy of CHRYSLER LLC
2. Push straight back to seat the cluster into the instrument panel.

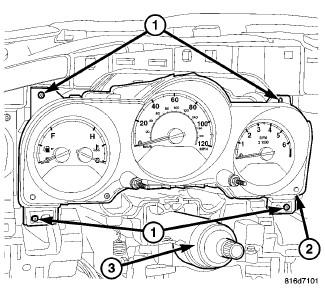

   Fig 3: Instrument Cluster Retaining Screws

   Courtesy of CHRYSLER LLC
3. Install four screws (1) to the instrument cluster (2).
4. Install the instrument cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Installation .
5. Connect the battery negative cable.
6. Close hood.
