Weatherstrip, Door: Removal: Convertible

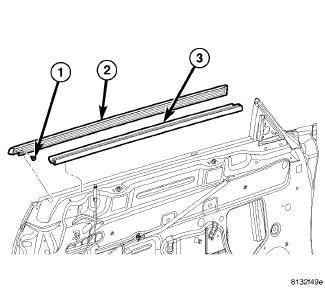

Fig 1: INNER/OUTER BELT WEATHERSTRIP
GC0116310Courtesy of CHRYSLER LLC
1 - ATTACHING SCREW
2 - OUTER BELT WEATHERSTRIP
3 - INNER BELT WEATHERSTRIP
  1. Open door glass.
  2. Remove weatherstrip screw at the rearward edge of door.
  3. Pull upward at rear end of outer belt weatherstrip (2).
  4. Remove outer belt weatherstrip (2) from vehicle.
