Weatherstrip, Door, Front And Rear: Removal: Coupe

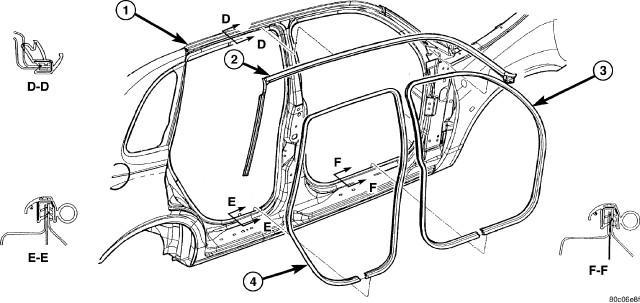

Fig 1: FRONT DOOR BODY MOUNTED WEATHERSTRIP

Courtesy of CHRYSLER LLC

1 - ROOF LINE

2 - FRONT/REAR DOOR UPPER SECONDARY WEATHERSTRIP

3 - FRONT DOOR OPENING WEATHERSTRIP

4 - REAR DOOR OPENING WEATHERSTRIP

1. Open front/rear door.
2. Remove door opening sill plate.
3. Pull body mounted weatherstrip from fence around door opening.
