Weatherstrip, Door, Front And Rear: Removal: Convertible

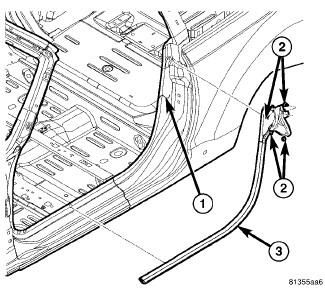

Fig 1: FRONT DOOR OPENING WEATHERSTRIP

Courtesy of CHRYSLER LLC

1 - BODY SIDE APERTURE PANEL

2 - PUSH PIN FASTENERS

3 - FRONT DOOR OPENING WEATHERSTRIP

1. Remove door sill scuff plate. See Body/Interior/PLATE, Scuff - Removal .
2. Remove four push pin fasteners (2) at the B-pillar end the weatherstrip.
3. Pull weatherstrip from vehicle.
