Removal
>>
Removal - Convertible
Removal - Convertible

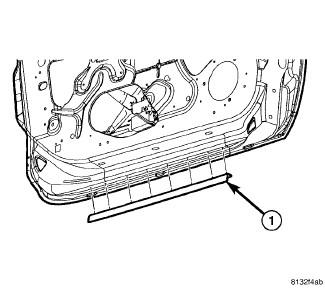

Fig 1: DOOR TO ROCKER SEAL
Courtesy of CHRYSLER LLC
Open the door.
Using a trim stick C-4755 or equivalent, remove the door sill weatherstrip (1) from the bottom of the door by releasing the retaining clips from the door panel.
