Motor, Sunroof: Removal: Removal

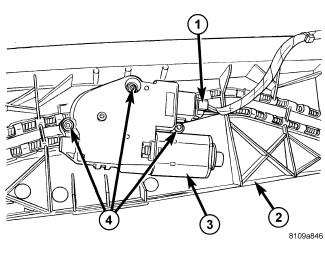

Fig 1: DRIVE MOTOR

Courtesy of CHRYSLER LLC

1 - ELECTRICAL CONNECTOR

2 - MODULE ASSEMBLY

3 - DRIVE MOTOR

4 - MOUNTING SCREWS

Remove headliner. See Body/Interior/HEADLINER - Removal .
Disconnect the electrical connector (1).
Remove three motor assembly attaching screws from bottom side of motor assembly.
Remove motor assembly from the motor bracket.
