Seat Back, Rear: Removal: Coupe

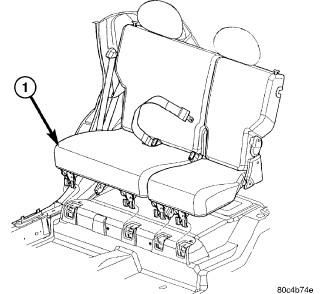

Fig 1: REAR SEAT
GC0116220Courtesy of CHRYSLER LLC
1 - REAR SEAT
  1. Remove seat from vehicle.
  2. Remove seat cushion side shields.

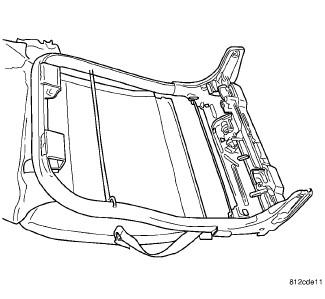

    Fig 2: REAR SEAT CUSHION FRAME
    GC0116246Courtesy of CHRYSLER LLC
  3. Remove bolts attaching recliner to seat back cushion frame.
  4. Remove inboard pivot bolt.
  5. Remove seat back from seat cushion.
