Seat Back, Rear: Removal: Convertible

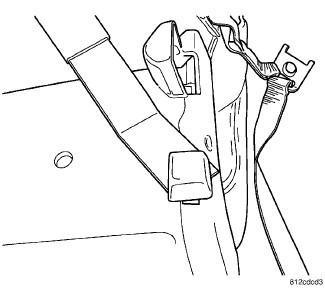

Fig 1: REMOVE RUBBER BUMPER
GC0116247Courtesy of CHRYSLER LLC
  1. Remove seat from vehicle. See Body/Seats/SEAT - Removal .
  2. Remove rubber bumper.

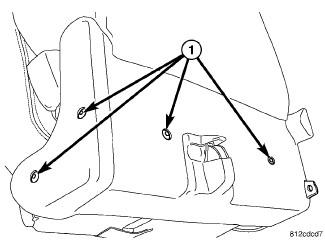

    Fig 2: REAR SEAT SHIELD
    GC0116248Courtesy of CHRYSLER LLC
    ATTACHING SCREWS
  3. Remove seat cushion side shields.

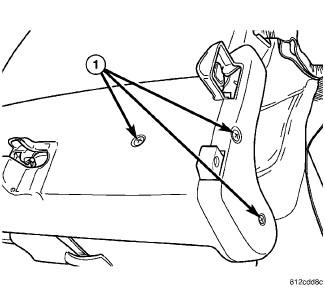

    Fig 3: REAR SEAT CUSHION SHIELD 2
    GC0116249Courtesy of CHRYSLER LLC
    1 - ATTACHING SCREWS
  4. Remove seat cushion side shields.

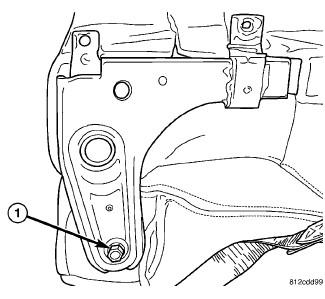

    Fig 4: HINGE BRACKET
    GC0116250Courtesy of CHRYSLER LLC
    1 - ATTACHING BOLT
  5. Remove inboard pivot bolt.
  6. Remove seat back from seat cushion.
