Cover, Seat Cushion, Rear: Removal: Coupe

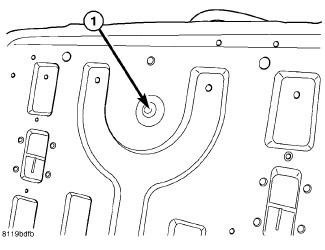

Fig 1: CENTER SHOULDER SEAT BELT RETRACTOR ATTACHING SCREW
GC0116240Courtesy of CHRYSLER LLC
  1. Remove seat from vehicle.
  2. Remove rear seat cushion side shields.
  3. Remove seat back.
  4. Remove rear seat and track assembly.
  5. Disengage J-strap attaching seat cover from the seat cushion frame.
  6. Pull cover off of the hog rings.
    Fig 2: SEAT CUSHION
    GC0116241Courtesy of CHRYSLER LLC
  7. Cut hog rings attaching seat cover to seat cushion pad.
  8. Remove seat cushion cover from seat cushion.
