Cover, Seat Back, Rear: Removal: Coupe

Fig 1: REAR SEAT

Courtesy of CHRYSLER LLC

1 - REAR SEAT

Remove seat from vehicle.

Fig 2: HEADREST

Courtesy of CHRYSLER LLC

1 - HEADREST ADJUSTER CAP WITH BUTTON

2 - HEADREST

3 - HEADREST ADJUSTER CAP WITH RELEASE TAB

Remove head restraint.

Fig 3: REAR 40% SEAT BACK COVER
Courtesy of CHRYSLER LLC
Remove rear seat back.

Fig 4: REAR SEAT BACK J-STRAP
Courtesy of CHRYSLER LLC
Disengage the J-strap retainer.

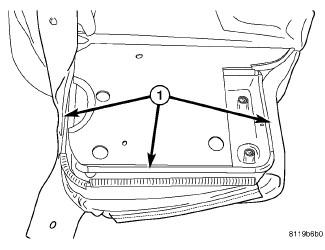

Fig 5: HOG RINGS
Courtesy of CHRYSLER LLC
Roll cover upward to hog rings (1). Cut hog rings to free cover.
Roll cover to top of seat back and remove head restraint sleeve guides.
Remove cover from seat back.
