Cover, Seat Back, Rear: Removal: Convertible

Fig 1: REAR SEAT BACK J-STRAP

Courtesy of CHRYSLER LLC

1. Remove seat from vehicle. See Body/Seats/SEAT - Removal .
2. Remove rear seat back. See Body/Seats/SEAT BACK - Installation .
   Fig 2: REAR SEAT BACK COVER

   Courtesy of CHRYSLER LLC

   1 - J-STRAP

3. Disengage the J-strap retainer.

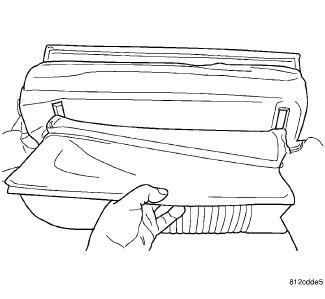

   Fig 3: REAR SEAT BACK COVER

   Courtesy of CHRYSLER LLC

   1 - PUSH PIN FASTENERS

4. Roll flap back to access push pin fasteners (1).

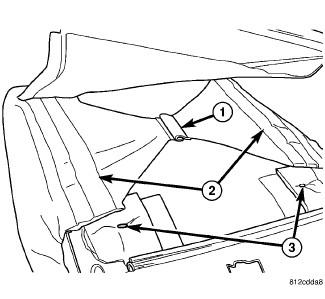

   Fig 4: REAR SEAT BACK COVER

   Courtesy of CHRYSLER LLC

   1 - J-STRAP

   2 - HOOK AND LOOP

   3 - HOG RINGS

5. Raise back flap to release the hook and loop (2) to access the J-strap (1) and hog rings (3). Release J-strap (1) and cut the hog rings (3).
   Fig 5: J-STRAP ON THE ROD

   Courtesy of CHRYSLER LLC
6. Disconnect the lower J-strap from the rod.
   Fig 6: J-STRAP ON UPPER ROD

   Courtesy of CHRYSLER LLC
7. Disconnect the upper J-strap from the rod.
   Fig 7: REAR SEAT BACK COVER

   Courtesy of CHRYSLER LLC

   1 - HOG RINGS

8. Roll cover upward to hog rings (1). Cut hog rings to free cover.
   Fig 8: REAR SEAT BACK COVER

   Courtesy of CHRYSLER LLC
9. Roll seat cover bottom to clear the foam.
   Fig 9: REAR SEAT BACK COVER

   Courtesy of CHRYSLER LLC

   1 - HOG RINGS

10. Roll seat back cover to the hog rings. Cut hog rings (1).

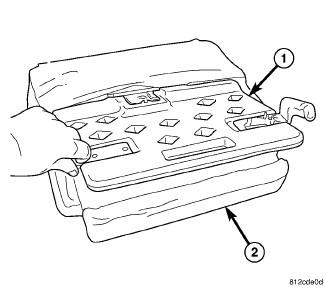

    Fig 10: REMOVE BACK PANEL

    Courtesy of CHRYSLER LLC

    1 - BACK PANEL

    2 - FOAM

11. Pull back panel (1) free of the seat cover and foam (2).

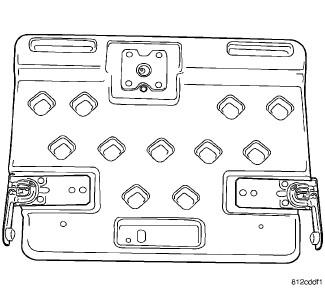

    Fig 11: REAR SEAT BACK PANEL

    Courtesy of CHRYSLER LLC
12. Remove seat back cover from the foam.
