Panel, Trunk Trim, Convertible: Removal: Removal

Fig 1: TRUNK TRIM

Courtesy of CHRYSLER LLC

1 - SEAT BACK RELEASE

2 - TRUNK SIDE TRIM PANEL(S)

3 - DECKLID SILL SCUFF PLATE

1. Remove decklid sill scuff plate (3). See Body/Interior/PLATE, Scuff - Removal .
2. Disconnect power outlet/cargo lamp, if equipped.

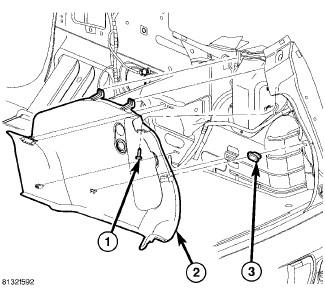

   Fig 2: TRUNK TRIM PANEL

   Courtesy of CHRYSLER LLC

   1 - PUSH PIN FASTENER

   2 - TRUNK TRIM PANEL

   3 - PLASTIC NUT

3. Remove push pin fastener (1) attaching trunk side trim panel (2).
4. Pull inward on trunk side trim panel (2) to disengage clips.
5. Remove trunk side trim panel (2) from vehicle. Repeat operation for other side.
