Panel, Quarter Trim, Convertible Rear: Removal: Removal

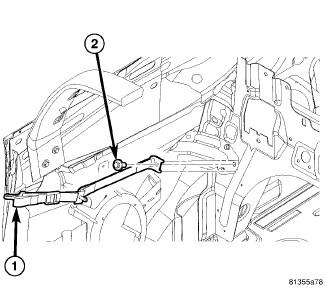

Fig 1: CHECK STRAP

Courtesy of CHRYSLER LLC

1 - CHECK STRAP

2 - ATTACHING SCREW

1. Fold rear seats flat.
2. Remove attaching screw (2) from left and right rear seat fold forward check strap (1).

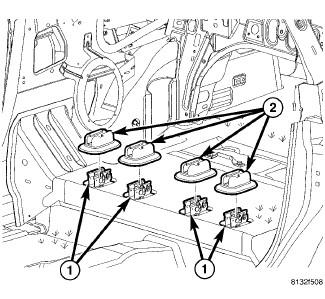

   Fig 2: PIVOT COVER BEZEL

   Courtesy of CHRYSLER LLC

   1 - REAR SEAT PIVOT BRACKET

   2 - PIVOT COVER BEZEL

3. Remove rear seat pivot bezels and striker bezel.

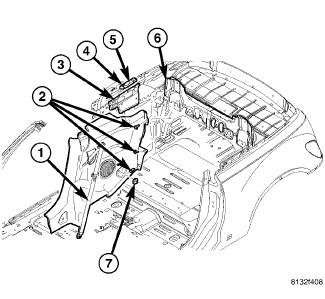

   Fig 3: QUARTER TRIM PANEL

   Courtesy of CHRYSLER LLC

   1 - SEAT BELT

   2 - ATTACHING SCREW(S)

   3 - FOLDING TOP PIVOT BRACKET

   4 - QUARTER TRIM BRACKET NUT

   5 - QUARTER TRIM BRACKET

   6 - REAR SEAT SUPPORT

   7 - LOWER ANCHOR ATTACHING NUT

4. Remove rear seat. See Body/Seats/SEAT - Removal .
5. Remove rear seat lower seat belt anchor attaching bolt.
6. Release J-strap at upper seat back slingwell.
7. Remove bolster from rear seat back support and move bolster out of the way. See Body/Seats/BOLSTER - Removal .
8. Remove lower seat belt anchor at B-pillar.
9. Remove turning loop anchor attaching bolt.
10. Move door sill scuff plate to allow removal of quarter trim panel.
11. Remove screws attaching quarter trim panel.
12. Remove quarter trim panel.
