Panel, A-Pillar Trim: Removal: Coupe

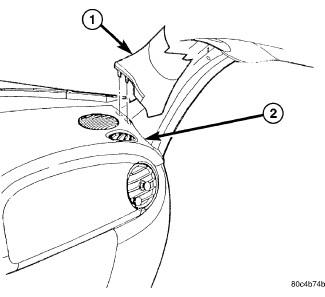

Fig 1: A-PILLAR TRIM
GC0116171Courtesy of CHRYSLER LLC
1 - WINDSHIELD (A-PILLAR) SIDE GARNISH TRIM
2 - INSTRUMENT PANEL TOP COVER
  1. Disengage clips attaching trim to A-pillar.
  2. Remove A-pillar trim (1) from vehicle.
