Body - Interior & Exterior: Interior: EXHAUSTER: Removal: Removal

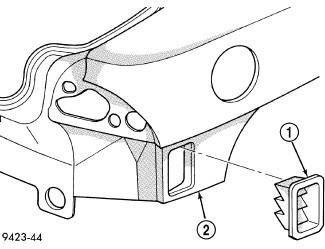

Fig 1: BODY VENT

Courtesy of CHRYSLER LLC

1 - BODY VENT

2 - TRUNK WELL SIDE PANEL

1. Hoist rear end of vehicle and support on safety stands.
2. From behind rear bumper fascia below quarter panel, disengage clips attaching body vent (1) to wheel well.
3. Remove body vent (1) from vehicle.
