Fender, Front: Removal: Removal
- Remove the headlamp housing from the side of the vehicle being serviced. Refer to Electrical/Lamps/Lighting - Exterior/UNIT, Headlamp - Removal .
- Raise and support the vehicle.
- If servicing the right front fender, remove the right side rail splash shield. See Body/Exterior/SHIELD, Splash - Removal .
- Remove the front wheelhouse splash shield from the side of the vehicle being serviced. See Body/Exterior/SHIELD, Splash - Removal .
- If servicing the right front fender, remove the antenna body and cable. Refer to Electrical/Audio and Video/BODY AND CABLE, Antenna - Removal .
- Remove the three fender to fascia nuts. Refer to Frame and Bumpers/Bumpers/FASCIA, Front - Removal .

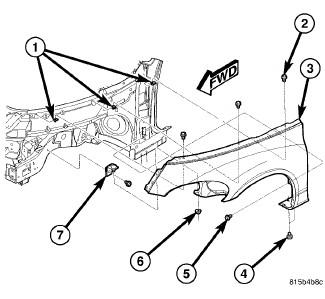

- Remove the two bolts (4) that secure the bottom of the front fender (3) to the lower rocker panel.
- Remove the bolt (5) that secures rear of the front fender to the side cowl panel.
- Remove the nut (6) that secures the front of the front fender to the frame support bracket (7).
- Remove the three bolts (2) that secure the top of the front fender to the three spring nuts (1) and remove the fender.
