Door - Front: WATERSHIELD: Removal: Coupe

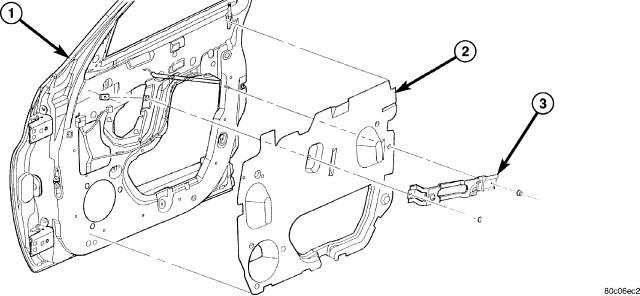

Fig 1: WATER DAM

Courtesy of CHRYSLER LLC

1 - FRONT DOOR	3 - FRONT DOOR ARMREST TO INNER PANEL ATTACHING BRACKET
2 - FRONT DOOR WATER DAM

Remove door trim panel.
Remove door speaker, if equipped.
Remove armrest (3) to inner panel bracket.
Disconnect outside power mirror and power window regulator connectors, if equipped.
Peel water dam (2) away from adhesive around perimeter of inner door panel.
