Door - Front: WATERSHIELD: Removal: Convertible

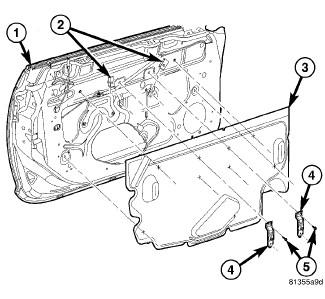

Fig 1: DOOR WATER DAM

Courtesy of CHRYSLER LLC

1 - DOOR ASSEMBLY

2 - U-NUTS

3 - WATER DAM

4 - ARM REST BRACKET

5 - ARM REST BRACKET ATTACHING SCREWS

1. Remove door trim panel. See Body/Door - Front/PANEL, Door Trim - Removal .
2. Remove door speaker, if equipped.
3. Remove armrest to inner panel bracket (4).
4. Disconnect outside power mirror and power window regulator connectors, if equipped.
5. Peel water dam (3) away from adhesive around perimeter of inner door panel.
