Removal - Convertible

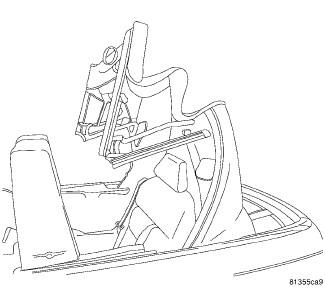

Fig 1: PARTIAL UP POSITION
GC0115998Courtesy of CHRYSLER LLC
  1. Place convertible top in the partial up position.
  2. Remove header end molding as necessary. Refer to PANEL, HEADER, CONVERTIBLE .

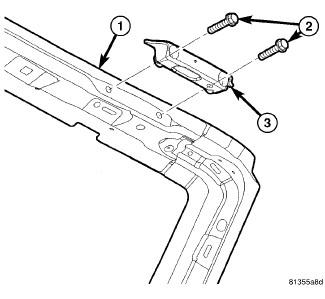

    Fig 2: HEADER LATCH RETAINER
    GC0115999Courtesy of CHRYSLER LLC
    1 - WINDSHIELD SURROUND FRAME
    2 - ATTACHING SCREWS
    3 - HEADER LATCH RETAINER
  3. Remove two screws attaching header latch retainer (3) to windshield surround frame (1).
  4. Remove header latch retainer (3) from vehicle.
