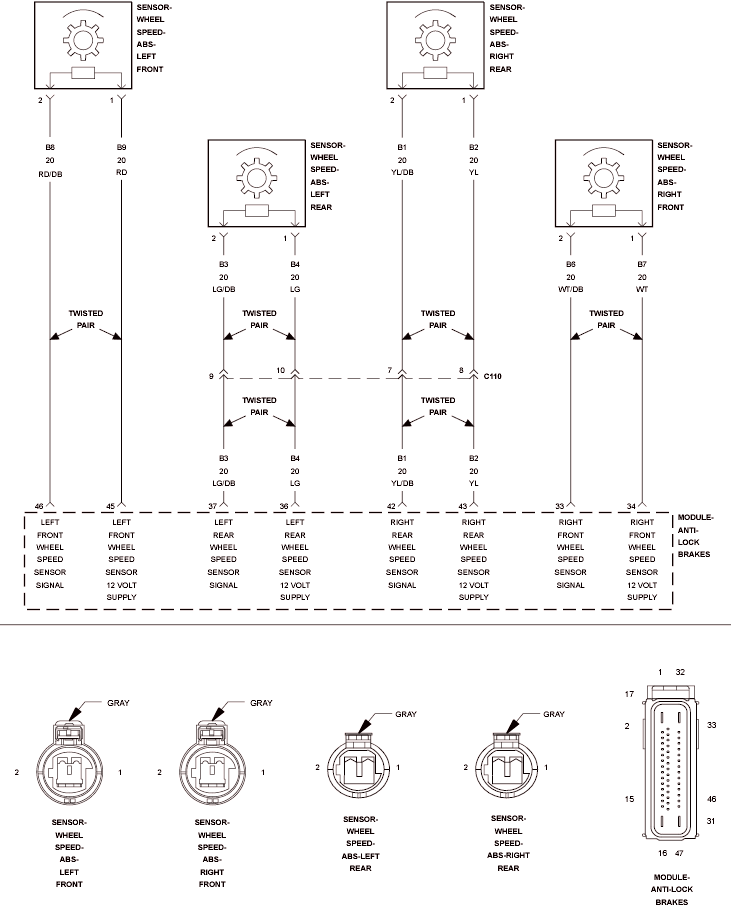

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis >> Brakes >> Traction Control >> (Anti-Lock Brake System - Electrical Diagnostics) >> DTC Troubleshooting >> C100A-Left Front Wheel Speed Sensor Circuit >> Circuit Schematic
