Pressure Bleeding

Following the same wheel circuit sequence as prescribed for manual bleeding.

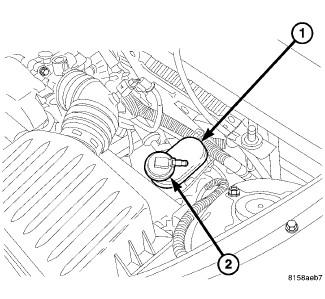

Fig 1: MASTER CYLINDER CAP 6921

Courtesy of CHRYSLER LLC

1. Attach Master Cylinder Cap (2), Special Tool 6921, in place of the filler cap on the master cylinder reservoir (1).
2. Attach Bleeder Tank, Special Tool C-3496-B, or an equivalent, to the Master Cylinder Cap 6921.
   Fig 2: BLEED HOSE SET UP

   Courtesy of CHRYSLER LLC
3. Attach a clear plastic hose (1) to the bleeder screw and feed the hose into a clear jar (2) containing enough fresh brake fluid to submerge the end of the hose.
4. Open the bleeder screw at least one full turn or more to obtain a steady stream of brake fluid.
5. After approximately 4-8 ounces of fluid have been bled through the brake circuit and an air-free flow is maintained in the clear plastic hose and jar, close the bleeder screw.
6. Repeat this procedure at all the remaining bleeder screws.
7. Check the brake pedal travel. If pedal travel is excessive or has not been improved, some air may still be trapped in the system. Re-bleed the brakes as necessary.
8. Test drive the vehicle to verify the brakes are operating properly and pedal feel is correct.
