SHOES, Parking Brake: Removal: Removal

NOTE: Before proceeding. See Brakes - Warning or Brakes - Caution .

Raise and support the vehicle. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure
NOTE: If removing parking brake shoes on both sides of vehicle, perform remaining steps on each side of the vehicle.

Fig 1: TIRE AND WHEEL MOUNTING
Courtesy of CHRYSLER LLC
Remove the wheel mounting nuts (3), then the tire and wheel assembly.
NOTE: In some cases, it may be necessary to retract the caliper piston in its bore a small amount in order to provide sufficient clearance between the pads and the rotor to easily remove the caliper from the knuckle. This can usually be accomplished before the guide pin bolts are removed, by grasping the inboard side of the caliper and pulling outward working with the guide pins, thus retracting the piston. Never push on the piston directly as it may get damaged.

Fig 2: REAR DISC BRAKES, HUB AND SPINDLE
Courtesy of CHRYSLER LLC
Remove the two caliper guide pin bolts (4).

Fig 3: CALIPER REMOVAL FROM ADAPTER
Courtesy of CHRYSLER LLC
Remove the caliper assembly (1) from the brake adapter by first rotating the top of the caliper away from the rotor (2), and then lifting the caliper assembly off the lower machined abutment (4) on the adapter.
Hang the brake caliper from rear strut using wire or cord to prevent the weight of the caliper from damaging the brake hose.

Fig 4: REAR DISC BRAKES, HUB AND SPINDLE
Courtesy of CHRYSLER LLC
Remove any clips (9) retaining the brake rotor (8) to the wheel studs.
Slide the brake rotor (8) off the hub and bearing (2).
Remove the dust cap (10) from the rear hub and bearing (2).
Remove the rear hub and bearing retaining nut (11).
Remove the rear hub and bearing (2) from the rear spindle (6).

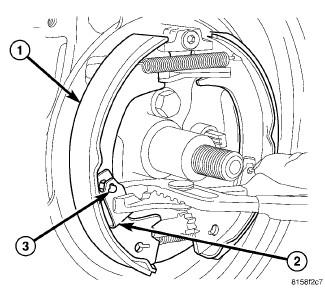

Fig 5: REAR SHOE HOLD-DOWN CLIP
Courtesy of CHRYSLER LLC

Remove the rear brake shoe (1) hold-down clip (2) from the hold-down pin (3).

Fig 6: Parking Brake Shoes

Courtesy of CHRYSLER LLC

1 - UPPER RETURN SPRING

2 - SHOE HOLD DOWN CLIPS

3 - ADJUSTER

4 - LOWER REAR SPRING

5 - DISC BRAKE ADAPTER

Turn the brake shoe adjuster (3) wheel until the adjuster is at shortest length.

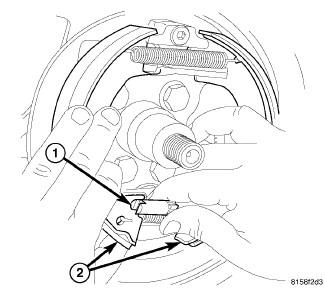

Fig 7: PARKING BRAKE SHOE ADJUSTER
Courtesy of CHRYSLER LLC
Remove the adjuster (1) from the parking brake shoes (2).

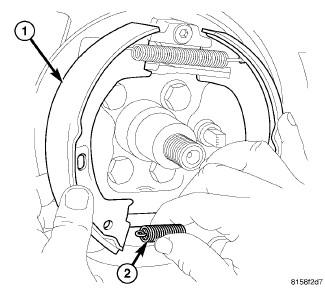

Fig 8: LOWER RETURN SPRING
Courtesy of CHRYSLER LLC
Remove the lower return spring (2).

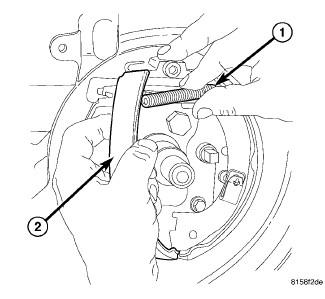

Fig 9: UPPER RETURN SPRING
Courtesy of CHRYSLER LLC
Pull the rear brake shoe away from the anchor and disconnect the upper return spring. Remove both from the vehicle.

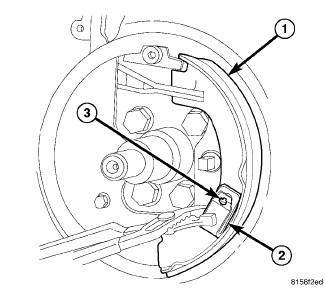

Fig 10: FRONT SHOE HOLD-DOWN CLIP
Courtesy of CHRYSLER LLC
Remove the front brake shoe (1) hold-down clip (2) from the hold-down pin (3).
Remove the front brake shoe.
