Guide Pin Bushings

Before disassembling the brake caliper, clean and inspect it. See Brakes/Hydraulic/Mechanical/CALIPER, Disc Brake - Inspection

NOTE: Use the following steps to remove each guide pin bushing and sleeve.

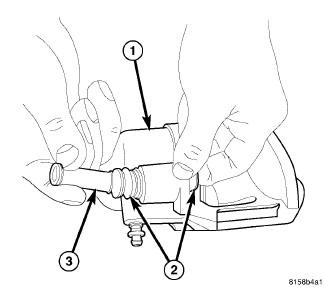

Fig 1: SLEEVE REMOVAL FROM CALIPER BUSHING

Courtesy of CHRYSLER LLC

Push the guide pin bushing sleeve (3) towards the back of the caliper (1), then pull the sleeve out the back of the caliper bushing (2).

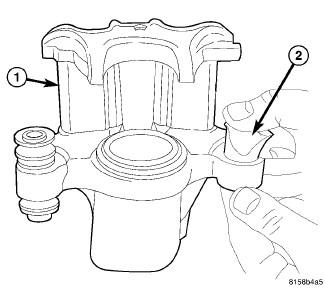

Fig 2: BUSHING REMOVAL FROM CALIPER
Courtesy of CHRYSLER LLC
Once the sleeve is removed, collapse one side of the rubber guide pin bushing (2). Pull the bushing out the opposite side of the brake caliper (1) mounting boss.
