Vehicle Preparation
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

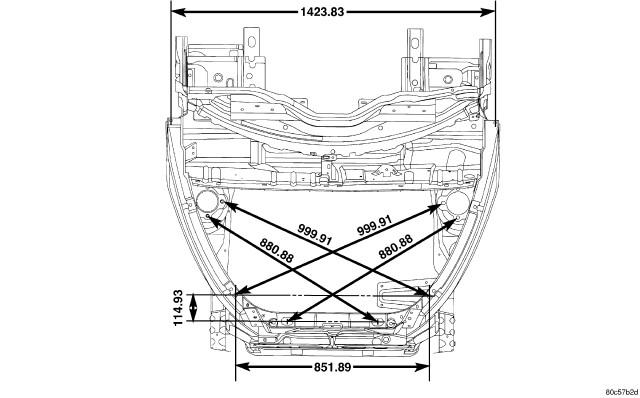

| ENGINE COMPARTMENT TOP VIEW | Fig 1 |

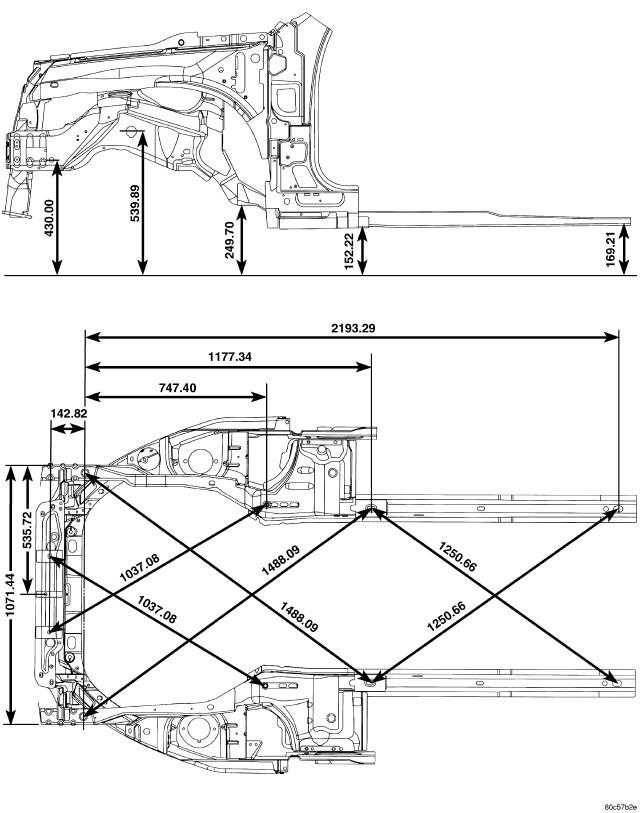

| ENGINE COMPARTMENT SIDE AND BOTTOM VIEW | Fig 2 |

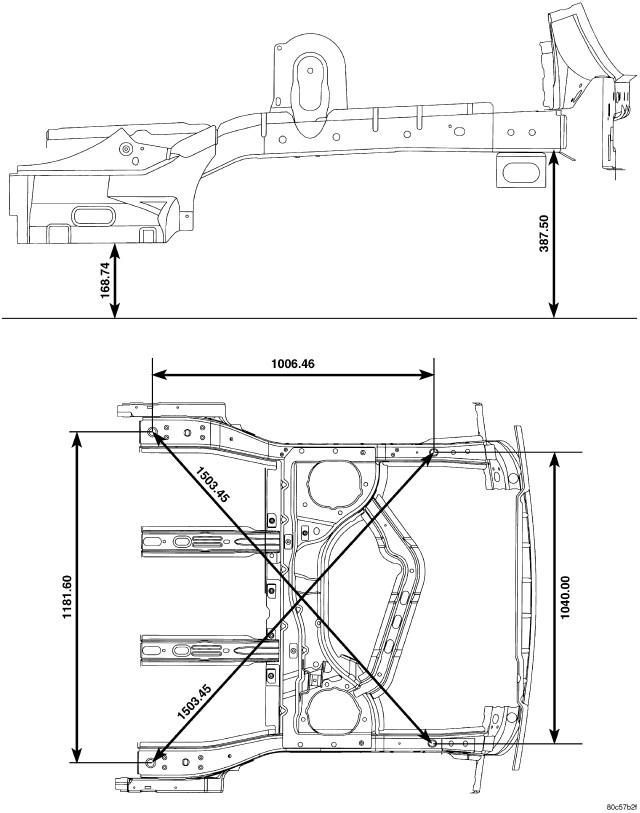

| REAR FRAME SECTION SIDE AND BOTTOM VIEW | Fig 3 |

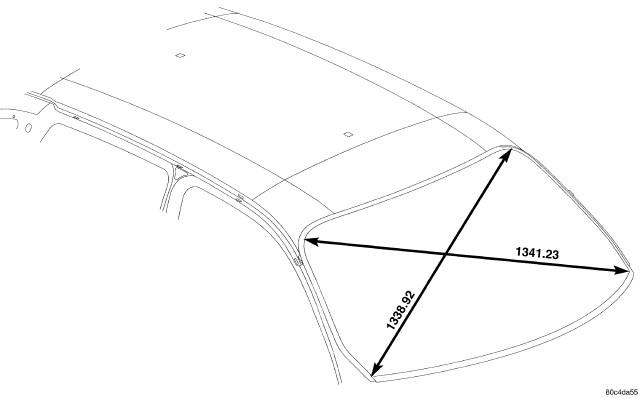

| WINDSHIELD OPENING DIMENSIONS | Fig 4 |

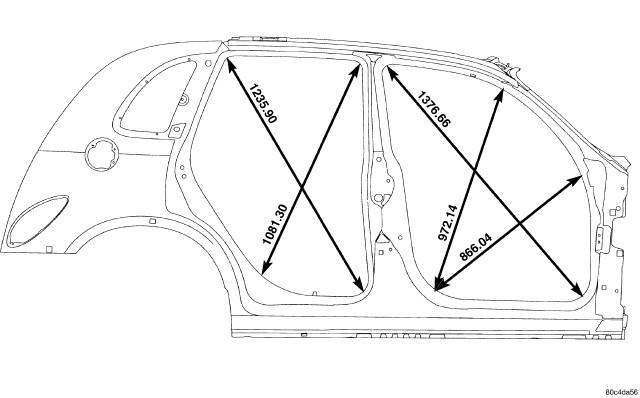

| FRONT AND REAR DOOR OPENING DIMENSIONS | Fig 5 |

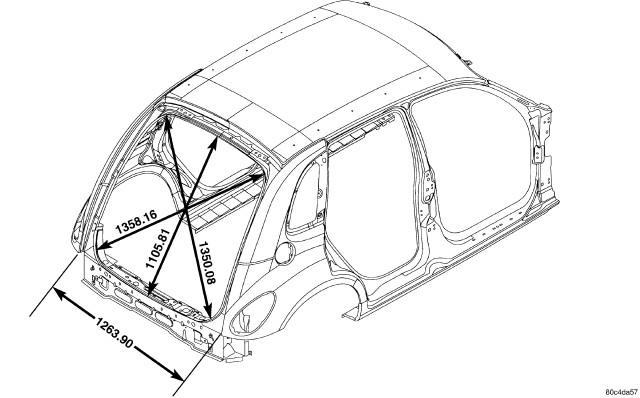

| REAR LIFTGATE OPENING DIMENSIONS | Fig 6 |
