Audio System & Video System (Service Information): Radio: Installation: Installation

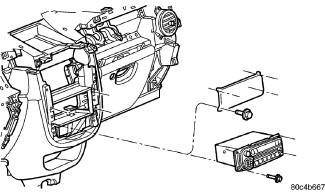

Fig 1: Mounting Fasteners & Radio From Instrument Panel

Courtesy of CHRYSLER LLC

1. Connect the wire harness connector and antenna cable to radio.
2. Insert radio into instrument panel.
3. Install mounting fasteners. Tighten to 2 N.m (20 in. lbs.).
4. Install instrument panel center bezel.
5. Connect battery negative cable.
