BODY AND CABLE, Antenna: Installation: Installation

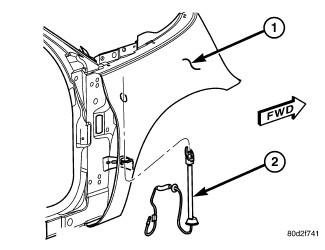

Fig 1: Antenna Body & Cable Assembly From Fender

Courtesy of CHRYSLER LLC

1. Position antenna body and cable assembly (2) into fender (1).
2. Insert antenna cable through the opening in fender.
   Fig 2: Antenna Body & Cable

   Courtesy of CHRYSLER LLC
3. Seat the grommet in the side panel and connect the cable to the instrument panel harness connector.
4. Install antenna nut (2) and adapter (3).
5. Install shroud (1), if equipped.
6. Install the inner fender shield.
7. Install antenna mast. Tighten to 5 N.m (46 in. lbs.). Ensure that the antenna mast is fully seated on antenna base and that there is no gap between the mast and base.
8. Connect the antenna cable to the instrument panel antenna cable.
9. Install the right side cowl trim panel.
10. Connect the battery negative cable.
