Diagnostic Test
- CHECK FOR AN INTERMITTENT CONDITION
- Turn the ignition on and open one of the front doors.NOTE: A front door must remain open whenever checking or erasing Amplifier DTCs.
- With the scan tool, record and erase the Amplifier DTCs.
- Cycle the ignition switch from on to off, wait five seconds and then back to on.
- Turn the Radio on and set the volume to 25.
- Adjust the speakers to the rear and center.
- Adjust the Bass to mid level.
- With the scan tool, read the active DTCs.
Does the scan tool display: B1484-CHANNEL 8 AUDIO SPEAKER OUTPUT CIRCUIT LOW?
Yes
- Go to step 2
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
- Turn the ignition on and open one of the front doors.
- CHECK THE SUBWOOFER SPEAKER FOR A SHORT TO GROUND
- With the scan tool, record and erase the Amplifier DTCs.
- Turn the ignition off.
- Disconnect the Subwoofer Speaker harness connector.
- Turn the ignition on.
- Turn the radio on with the settings the same as in Step 1.
- With the scan tool, read the active DTCs.
Does the scan tool display: B1484-CHANNEL 8 AUDIO SPEAKER OUTPUT CIRCUIT LOW?
Yes
- Go to step 3
No
- Replace the Subwoofer Speaker in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
- CHECK THE (X301) AMPLIFIED SUBWOOFER 2 (+) CIRCUIT FOR A SHORT TO GROUND
- Turn the ignition off.
- Disconnect the Amplifier C2 harness connector.

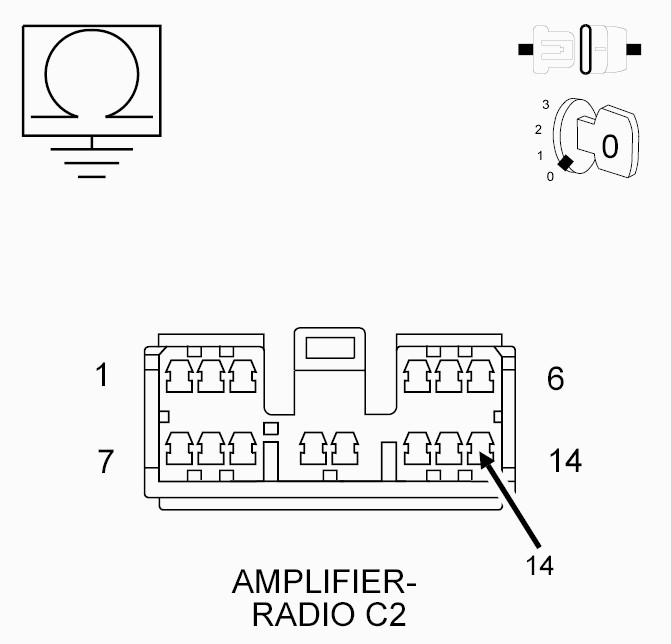

- Measure the resistance between ground and the (X301) Amplifier Subwoofer 2 (+) circuit.
Is the resistance below 10K Ohms?
Yes
- Repair the (X301) Amplifier Subwoofer 2 (+) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
No
- Go to step 4
- CHECK THE (X391) AMPLIFIED SUBWOOFER 2 (-) CIRCUIT FOR A SHORT TO GROUND

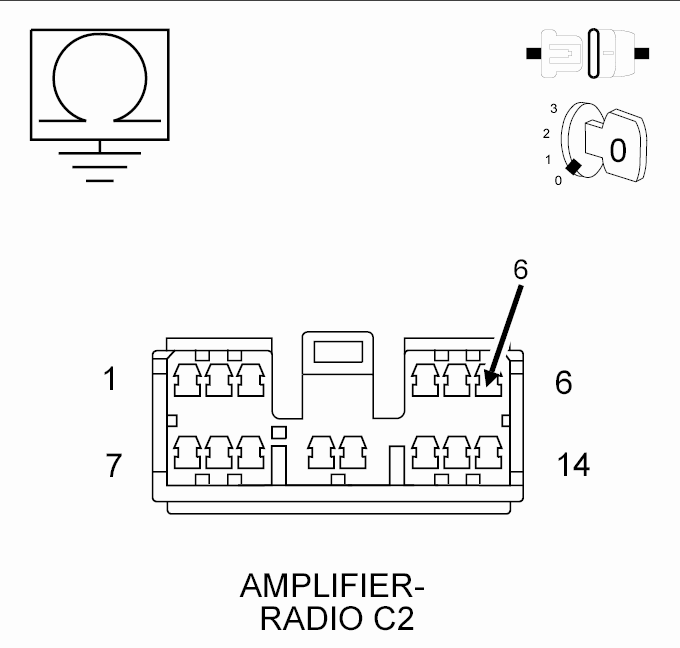

- Measure the resistance between ground and the (X391) Amplified Subwoofer 2 (-) circuit.
Is the resistance below 10K Ohms?
Yes
- Repair the (X391) Amplified Subwoofer 2 (-) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
No
- Replace the Amplifier in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
- Measure the resistance between ground and the (X391) Amplified Subwoofer 2 (-) circuit.
