Diagnostic Test
- CHECK FOR AN INTERMITTENT CONDITION
- Turn the ignition on and open one of the front doors.NOTE: A front door must remain open whenever checking or erasing Amplifier DTCs.
- With the scan tool, record and erase the Amplifier DTCs.
- Cycle the ignition switch from on to off, wait five seconds and then back to on.
- Turn the Radio on and set the volume to 25.
- Adjust the speakers to the rear and center.
- With the scan tool, read the active DTCs.
Does the scan tool display: B1480-CHANNEL 7 AUDIO SPEAKER OUTPUT CIRCUIT HIGH?
Yes
- Go to step 2
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
- Turn the ignition on and open one of the front doors.
- CHECK FOR VOLTAGE ON THE (X300) AMPLIFIED SUBWOOFER 1 (+) CIRCUIT
- Turn the ignition off.
- Disconnect the Radio Amplifier C2 harness connector.
- Disconnect the Subwoofer Speaker harness connector.NOTE: The graphic shows the various Subwoofer Speaker and Subwoofer Amplifier connectors that are used for the various systems. They are shown here for reference only.
- Turn the ignition on.

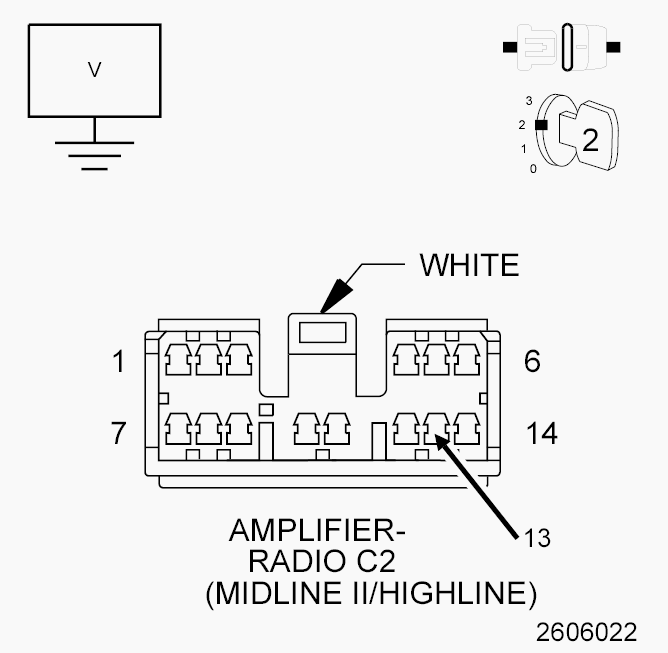

- Measure the voltage between the (X300) Amplified Subwoofer Speaker 1 (+) circuit and ground at the Radio Amplifier connector.
Is there any voltage present?
Yes
- Repair the (X300) Amplified Subwoofer 1 (+) circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
No
- Go to step 3
- CHECK FOR VOLTAGE ON THE (X390) AMPLIFIED SUBWOOFER 1 (-) CIRCUIT
- Measure the voltage between the (X390) Amplified Subwoofer 1 (-) circuit and ground.
Is there any voltage present?
Yes
- Repair the (X390) Amplified Subwoofer 1 (-) circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
No
- Replace the Radio Amplifier in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
- Measure the voltage between the (X390) Amplified Subwoofer 1 (-) circuit and ground.
