LAMP, Center High Mounted Stop: Removal: Removal

Fig 1: Removing/Installing Center High Mounted Stop Lamp Bulb

Courtesy of CHRYSLER LLC

1. Open liftgate.
2. Remove liftgate CHMSL cover.
3. Disconnect the wire harness from the CHMSL.

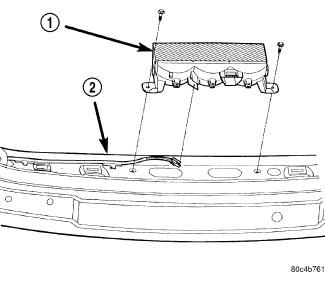

   Fig 2: Removing/Installing Center High Mounted Stop Lamp Unit

   Courtesy of CHRYSLER LLC
4. Remove screws attaching the CHMSL unit.
5. Remove the CHMSL unit from vehicle.
