SWITCH, Speed Control: Removal: Removal

Fig 1: Speed Control Switch

Courtesy of CHRYSLER LLC

The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.

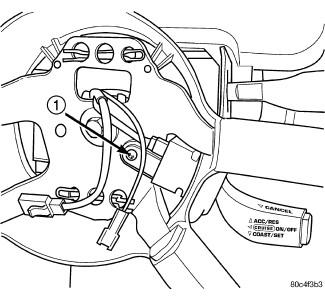

Fig 2: Speed Control Switch Top Mounting Screw

Courtesy of CHRYSLER LLC

1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Remove the negative battery cable.
3. Turn off ignition.
4. Remove air bag. Refer to REMOVAL .
5. Remove the top mounting screw.
   Fig 3: Removing/Installing Speed Control Switch

   Courtesy of CHRYSLER LLC
6. Rotate steering wheel so that the switch is in the 6 o'clock position. Remove 2 screws from the back side of the speed control switch.
7. Disconnect the electrical connector.
8. Remove switch.
