CABLE, Speed Control: Removal: Removal

Fig 1: Identifying Throttle Control Shield

Courtesy of CHRYSLER LLC

Disconnect the negative battery cable.
Remove the throttle control shield .

Fig 2: Identifying Throttle Cable Bracket Retaining Tabs
Courtesy of CHRYSLER LLC
Remove the speed control cable from the throttle body lever.
Remove from throttle cable bracket by compressing the retaining tabs on the cable and slide cable out of the bracket .

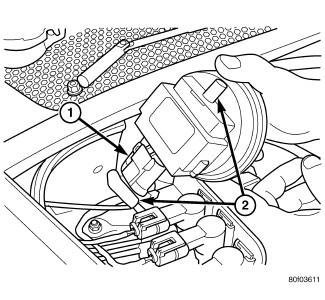

Fig 3: Identifying Vacuum Line, Nipple, & Electrical Connector
Courtesy of CHRYSLER LLC

1 - Electrical Connector

2 - Vacuum Line and Nipple
Remove the vacuum line from the speed control servo.

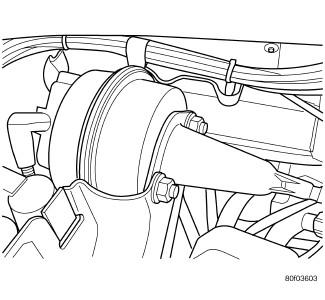

Fig 4: Identifying Speed Control Servo Mounting Nuts
Courtesy of CHRYSLER LLC
Remove the 2 nuts from the speed control servo studs .

Fig 5: Removing/Installing Cable Retaining Clip
Courtesy of CHRYSLER LLC

1 - HAIRPIN CLIP
Push and pull up the speed control servo from the mounting bracket.
Unlock and disconnect the electrical connector from the speed control servo .
Remove the 2 push clips and discard.
Remove the retaining clip holding cable to servo .
Remove the cable.
