Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and fully seated and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU view.
  NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go to step 2
  No
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
(A411) FUSED B(+) CIRCUIT OPEN OR SHORTED

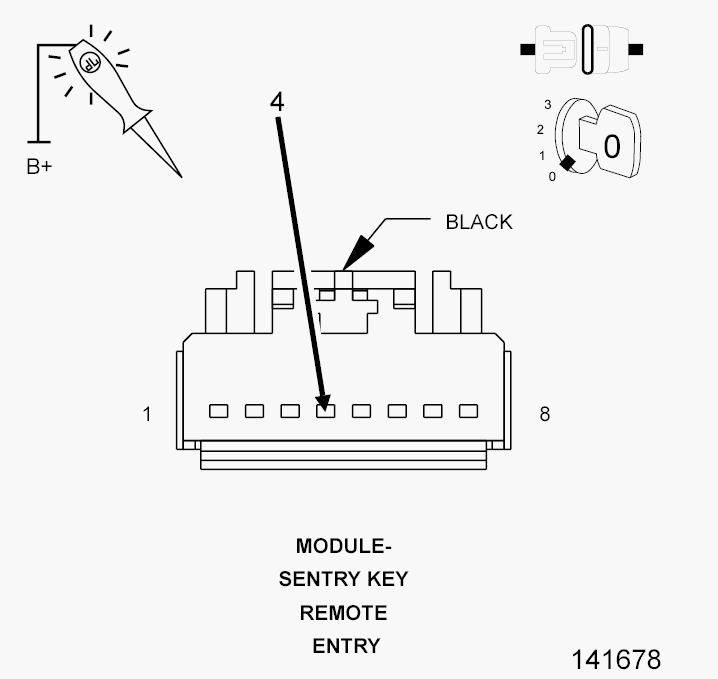

Fig 1: Checking Fused B(+) Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the WCM harness connector.
3. Using a 12-volt test light connected to ground, check the (A411) Fused B(+) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 3
  No
  - Repair the (A411) Fused B(+) circuit for an open or short.
  - Perform the WCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Wireless Control (WCM) - Standard Procedure
(Z906) GROUND CIRCUIT OPEN

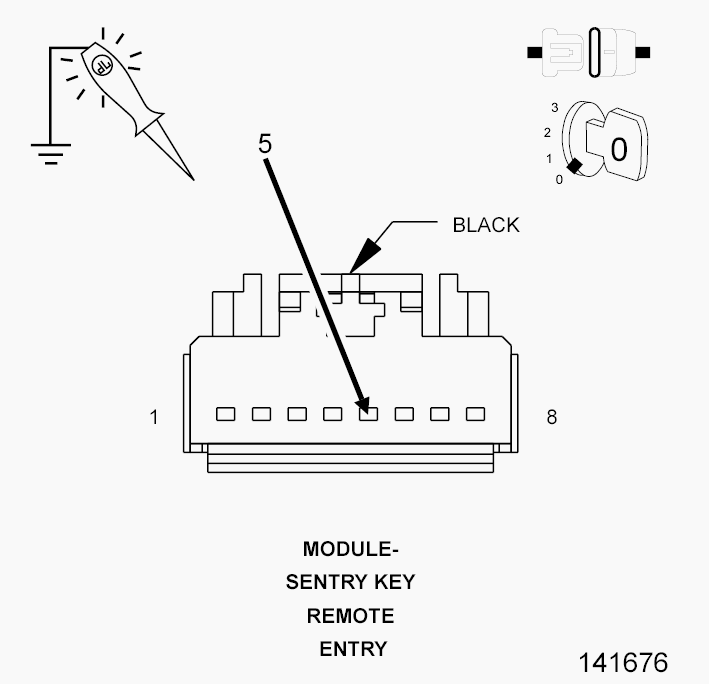

Fig 2: Checking Ground Circuit
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z906) ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 4
  No
  - Repair the (Z906) ground circuit for an open.
  - Perform the WCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Wireless Control (WCM) - Standard Procedure
(F20) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

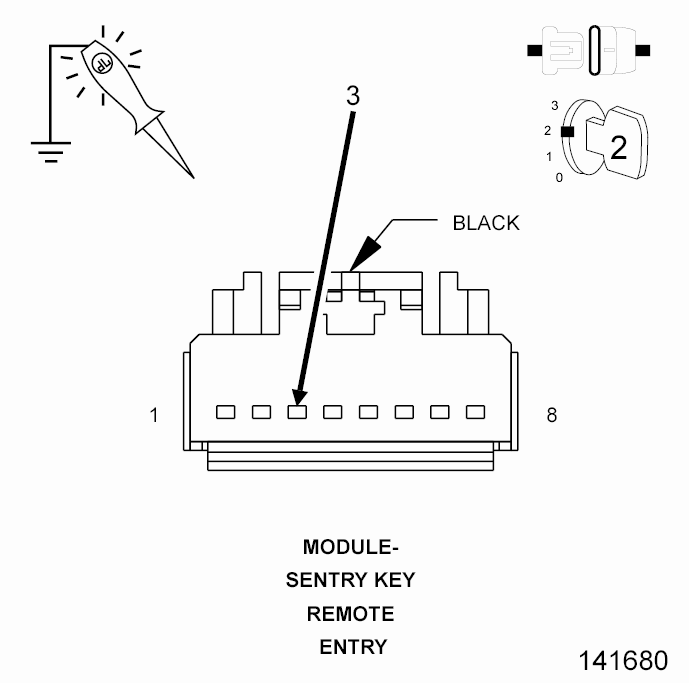

Fig 3: Checking Fused Ignition Switch Output Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F20) Fused Ignition Switch Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 5
  No
  - Repair the (F20) Fused Ignition Switch Output circuit for an open or short.
  - Perform the WCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Wireless Control (WCM) - Standard Procedure
(D55) AND (D54) CAN B BUS CIRCUITS OPEN

Fig 4: Checking CAN B BUS Circuits
Courtesy of CHRYSLER LLC

NOTE: One open circuit will not cause this condition.
1. Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.
2. Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.
  Is there any voltage present on either circuit?

  Yes
  - Replace the Sentry Key Remote Entry Module (WCM) in accordance with the Service Information.
  - Perform the WCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Wireless Control (WCM) - Standard Procedure
  No
  - Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
  - Perform the WCM VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Wireless Control (WCM) - Standard Procedure .
