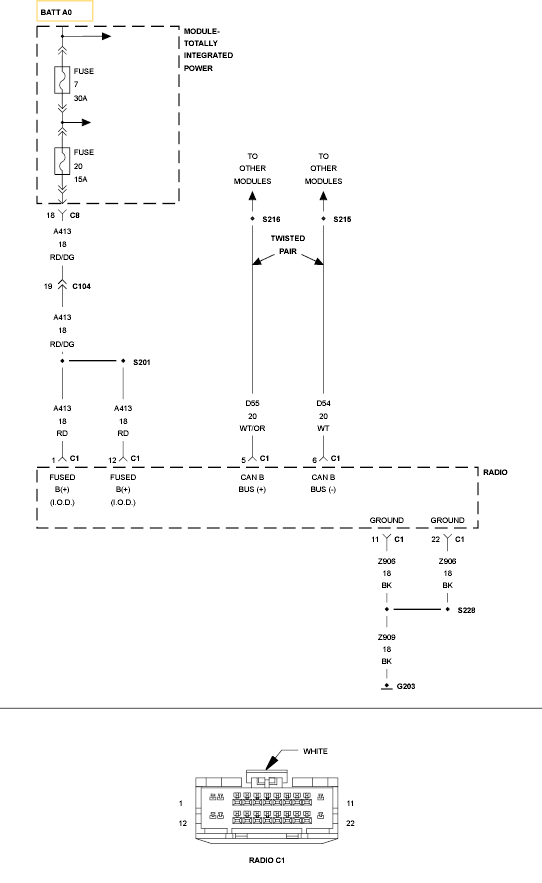

No Response From Radio: Notes
For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A413) FUSED B (+) CIRCUIT OPEN OR SHORTED |
| (Z906) GROUND CIRCUIT OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| RADIO |
For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A413) FUSED B (+) CIRCUIT OPEN OR SHORTED |
| (Z906) GROUND CIRCUIT OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| RADIO |
