No Response From PDM (Right Window Regulator Module) (Pt27): Notes

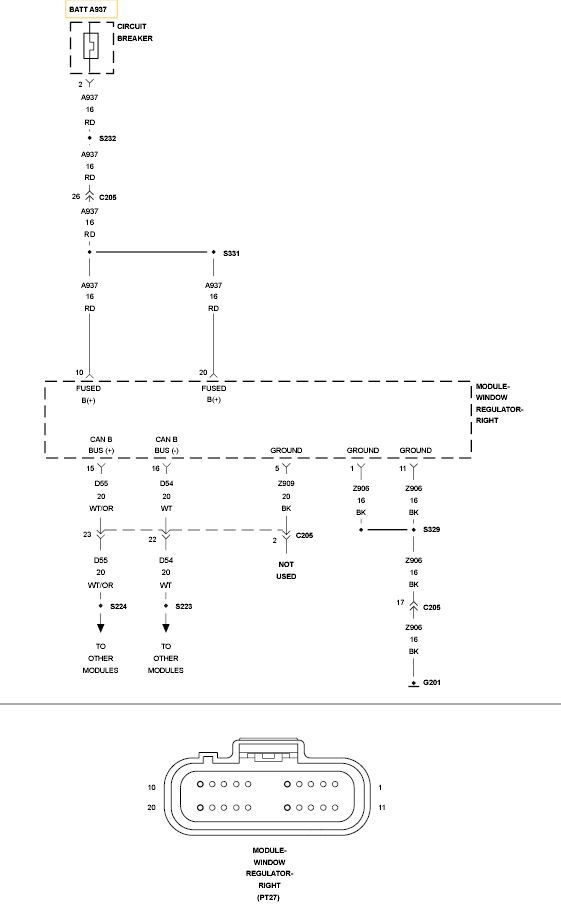

Fig 1: Right Window Regulator Module Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
FUSED B (+) CIRCUIT OPEN OR SHORTED
(Z906) (Z909) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
RIGHT WINDOW REGULATOR MODULE
