No Response From OCM (Occupant Classification Module): Notes

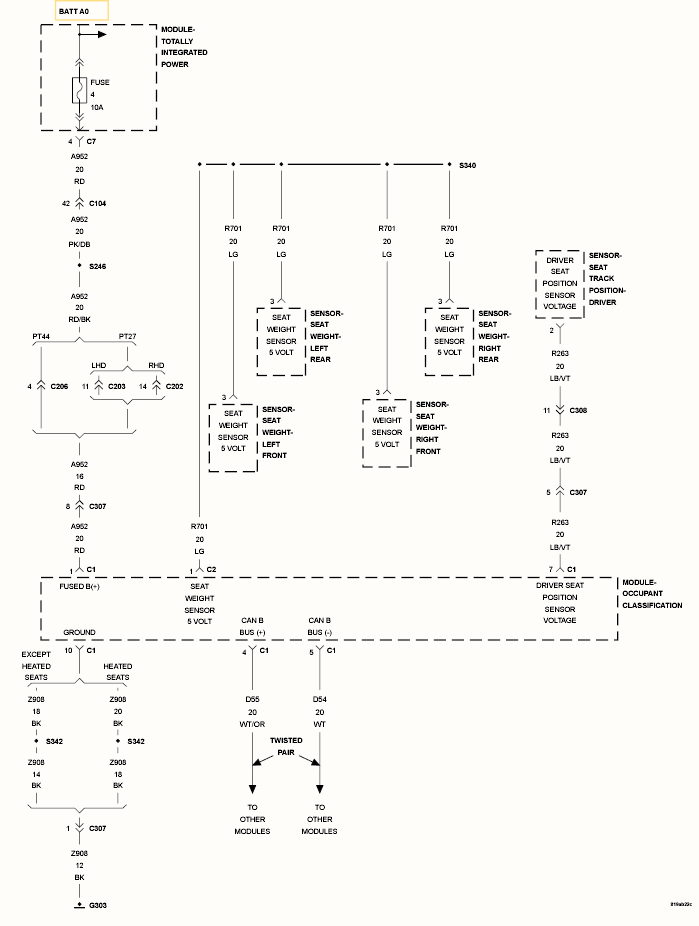

Fig 1: Occupant Classification Module Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A417) FUSED B(+) CIRCUIT OPEN OR SHORTED
(Z908) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
(R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO GROUND
(R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT FOR A SHORT TO GROUND
OCCUPANT CLASSIFICATION MODULE
