Diagnostic Test

  1. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
      NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
    2. With the scan tool, select ECU view.
      NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

      Does the scan tool display a red "X" next to the module?

      Yes

      • Go to step  2

      No

      • The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched and partially broken wires and the wiring harness connectors for broken, bent, pushed out and corroded terminals.
  2. (A417) FUSED B(+) CIRCUIT OPEN OR SHORTED
    Fig 1: Checking Fused B(+) Circuit
    GC0117664Courtesy of CHRYSLER LLC
    WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
    1. Disconnect the Occupant Classification Module (OCM) C1 harness connector.
      WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
    2. Using a 12-volt test light connected to ground, check the (A417) Fused B(+) circuit.

      Does the test light illuminate brightly?

      Yes

      • Go to step  3

      No

  3. (Z908) GROUND CIRCUIT OPEN

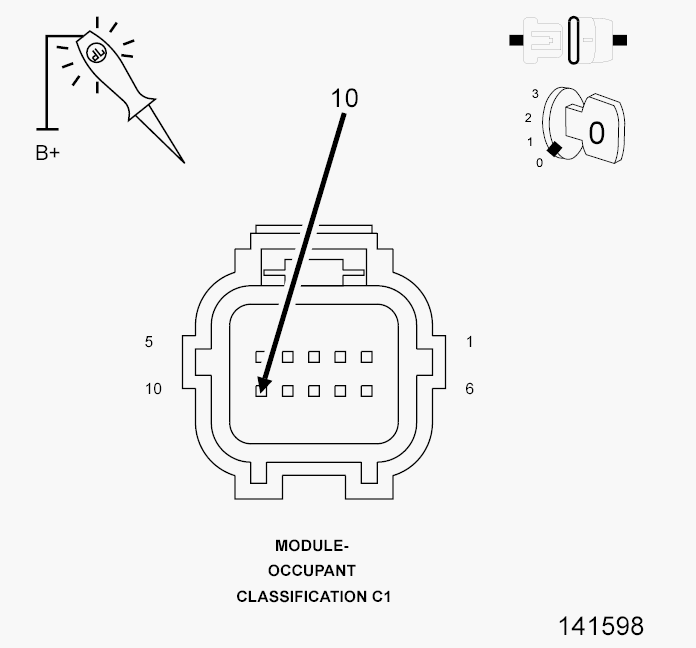

    Fig 2: Checking Ground Circuit
    GC0117665Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Using a 12-volt test light connected to 12-volts, check the (Z908) ground circuit.

      Does the test light illuminate brightly?

      Yes

      • Go to step  4

      No

  4. (D55) AND (D54) CAN B BUS CIRCUITS OPEN

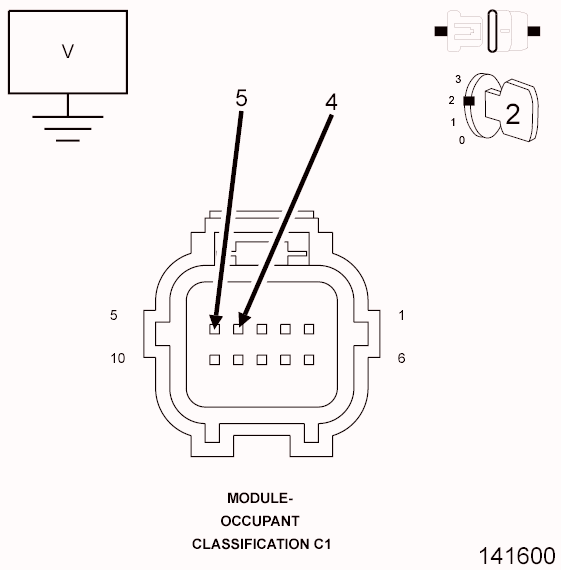

    Fig 3: Checking CAN B BUS Circuits
    GC0117666Courtesy of CHRYSLER LLC
    WARNING: If the Occupant Classification Module (OCM) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and personal injury or death.
    NOTE: One open circuit will not cause this condition.
    1. Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.
    2. Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.

      Is there any voltage present on either circuit?

      Yes

      • Go to step  5

      No

  5. CHECK (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO GROUND
    1. Turn the ignition off.
    2. Measure the resistance between ground and the (R263) Driver Seat Position Sensor Voltage-Driver circuit.

      Is the resistance below 10K Ohms?

      Yes

      No

      • Go to step  6
  6. CHECK (R701) SEAT WEIGHT SENOR 5 VOLT CIRCUIT FOR A SHORT TO GROUND
    1. Disconnect the Occupant Classification Module (OCM) C2 harness connector.
    2. Measure the resistance between ground and the (R701) Seat Weight Sensor 5 volt circuit.

      Is the resistance below 10K Ohms?

      Yes

      No
