No Response From HFM (Hands Free Module): Notes

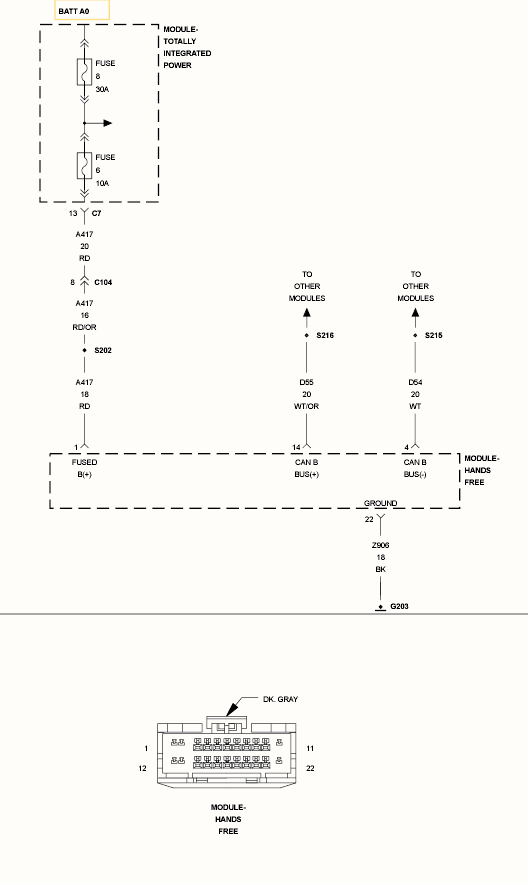

Fig 1: Hands Free Module Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A417) FUSED B(+) CIRCUIT OPEN OR SHORTED
(Z906) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
HANDS FREE MODULE
