No Response From DDM (Left Window Regulator Module) (Pt27): Notes

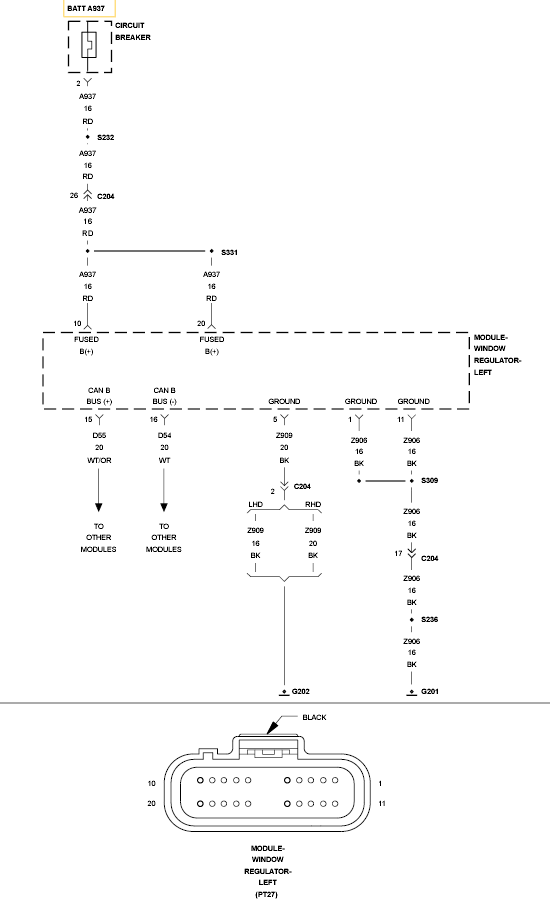

Fig 1: Left Window Regulator Module Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A937) FUSED B (+) CIRCUIT OPEN OR SHORTED
(Z907) (Z909) GROUND CIRCUIT OPEN
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
LEFT WINDOW REGULATOR MODULE
