No Response From CCN (Cluster): Notes

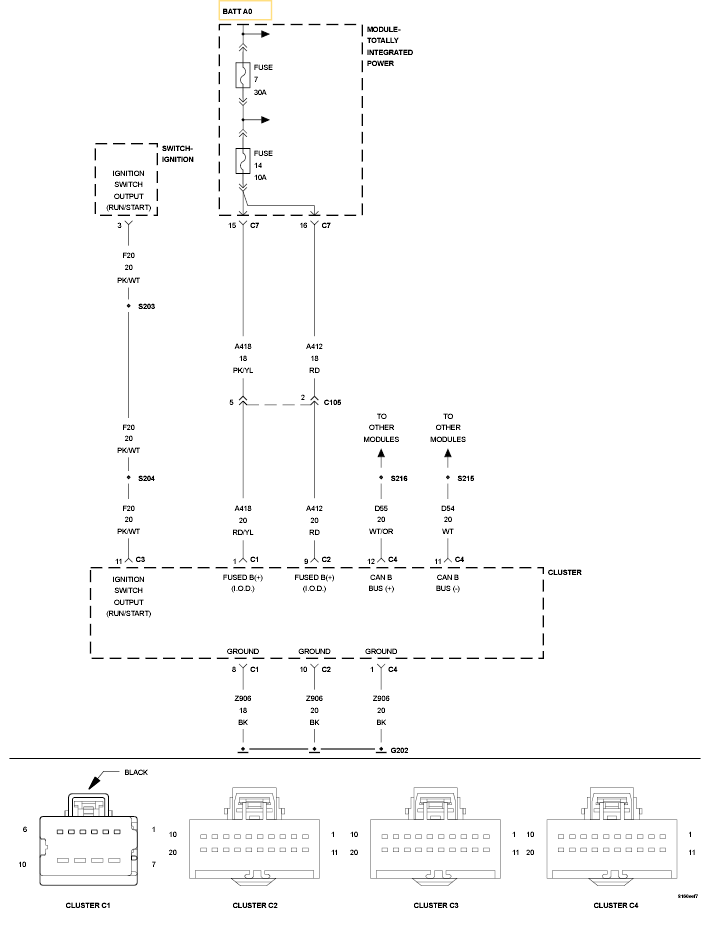

Fig 1: Cluster Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A418) (A412) FUSED B(+) CIRCUITS OPEN OR SHORTED
(Z906) GROUND CIRCUITS OPEN
(F20) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
CLUSTER (CCN)
