No Response From Abs (Antilock Brake Module): Notes

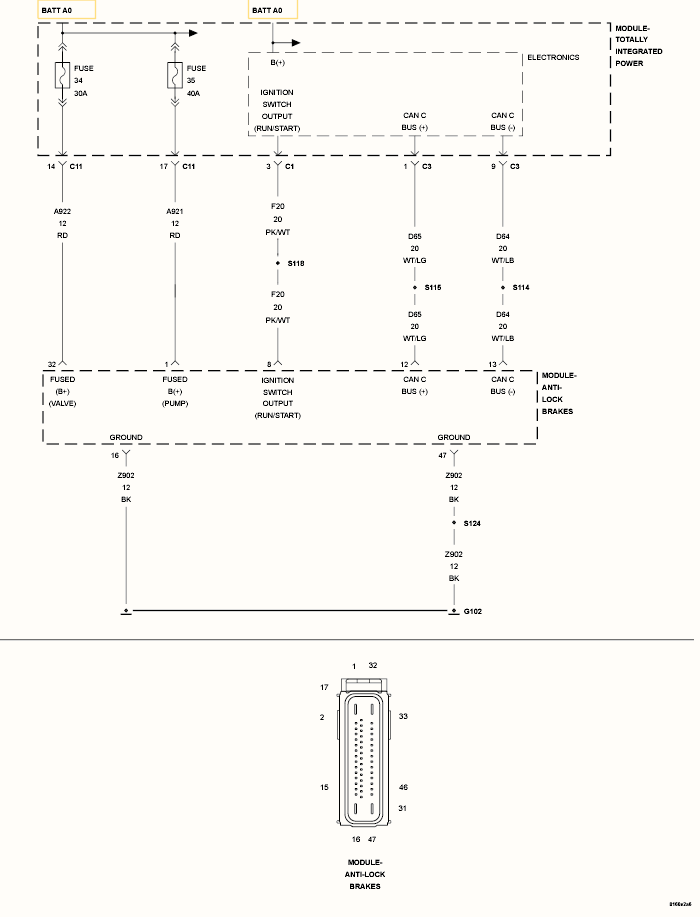

Fig 1: ABS & TIPM Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A921) (A922) FUSED B(+) CIRCUIT OPEN OR SHORTED
(Z902) GROUND CIRCUIT OPEN
(F20) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
ANTILOCK BRAKE MODULE
