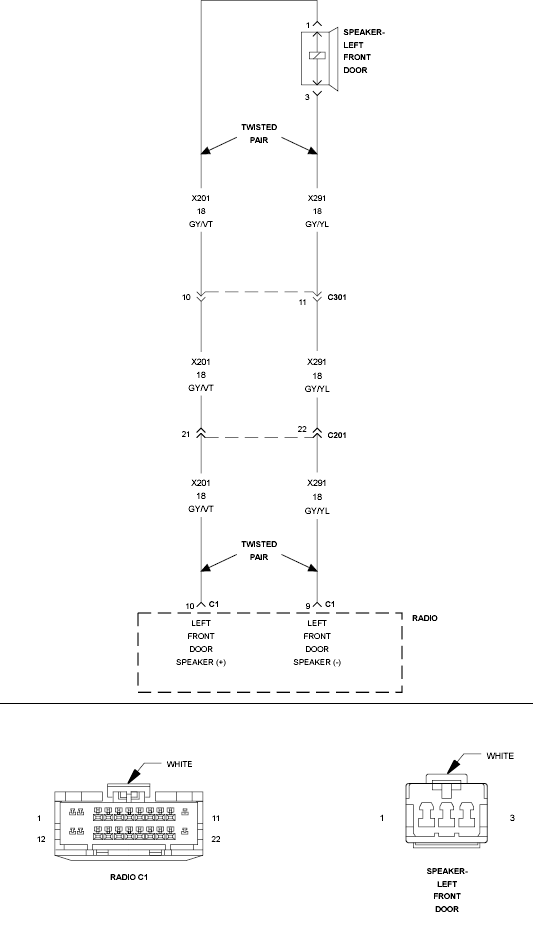

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> (Audio System (Radio) - Electrical Diagnostics) >> DTC Troubleshooting >> B1401-Front Left Audio Speaker Output Circuit Low >> Circuit Schematic
