Glass, Sunroof: Removal: Removal

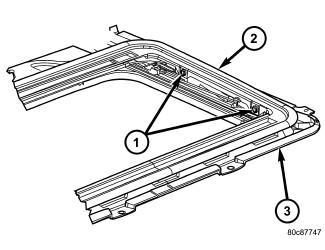

Fig 1: GLASS PANEL

GC0116282

Courtesy of CHRYSLER LLC

1 - SCREWS

2 - GLASS PANEL

3 - MODULE ASSEMBLY

Move the glass panel (2) to the closed position.
Slide sunshade rearward to the open position.
Remove the four glass panel screws (1).
Lift off glass panel (2) and remove from vehicle.
