Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all Audio DTCs.
3. Turn the radio on.
4. With the scan tool, read the DTC information.
  Does the scan tool read: B1405-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
(X202) (X292) SPEAKER OUTPUT CIRCUITS

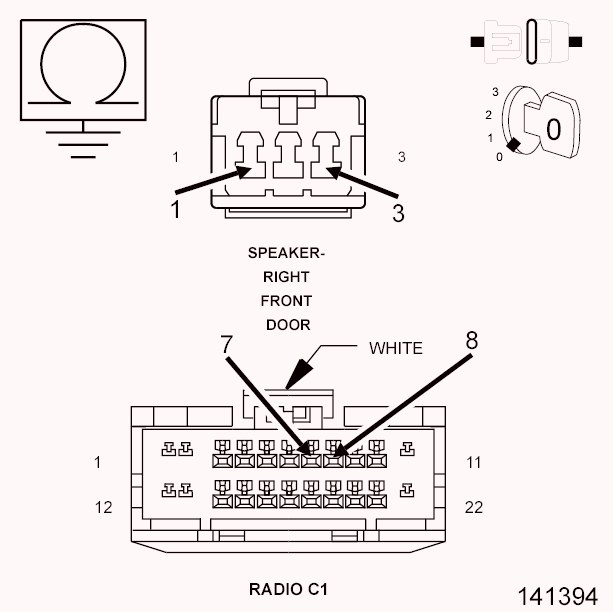

Fig 1: Front Right Audio Speaker Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Radio C1 harness connector.
3. Disconnect the Front Right Audio Speaker connector.
4. Measure the resistance between ground and each speaker (X202) (+) and (X292) (-) circuit.
  Is the resistance below 1000.0 Ohms for each circuit?

  Yes
  - Repair the applicable speaker (+) or (-) output circuit for a short to ground condition.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
SPEAKER

Fig 2: Front Right Audio Speaker
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Front Right Audio Speaker.
3. Turn the ignition on.
4. Turn the radio on.
5. With the scan tool, clear all Audio DTCs.
6. With the scan tool, read the DTC information.
  Does the scan tool read: B1405-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW?

  Yes
  - Replace the speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Test Complete.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
