Diagnostic Test

CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.
  NOTE: A front door must remain open whenever checking or erasing Amplifier DTCs.
2. With the scan tool, record and erase the DTCs.
3. Turn the radio on and set the volume to 25.
4. Adjust the speakers to the rear and center.
5. Adjust the Bass to mid level.
6. With the scan tool, read the active DTCs.
  Does the scan tool display active: B1482-CHANNEL 7 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER?

  Yes
  - Go to step 2
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE OPERATION OF THE SUBWOOFER SPEAKER

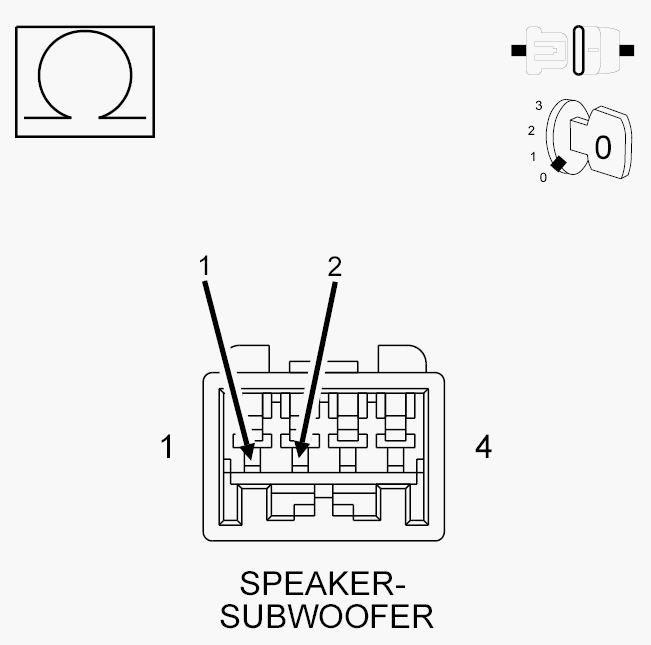

Fig 1: Checking Operation Of Subwoofer Speaker
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Subwoofer Speaker harness connector.
3. Measure the resistance of the Subwoofer Speaker between the component terminals.
  NOTE: The graphic shows the connector for reference only. Measure between the subwoofer speaker terminals.

  Is the resistance of the speaker below 1 Ohm?

  Yes
  - Replace the Subwoofer Speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
CHECK THE (X300) AMPLIFIED SUBWOOFER 1 (+) CIRCUIT, AND THE (X390) AMPLIFIED SUBWOOFER 1 (-) CIRCUITS FOR A SHORT TOGETHER

Fig 2: Checking Amplified Subwoofer 1 (+) Circuit & Amplified Subwoofer 1 (-) Circuits For A Short Together
Courtesy of CHRYSLER LLC
1. Disconnect the Amplifier C2 harness connector.
2. Measure the resistance between the (X300) Amplified Subwoofer 1 (+) circuit, and the (X390) Amplified Subwoofer 1 (-) circuit.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (X300) Amplified Subwoofer 1 (+) circuit for a short to the (X390) Amplified Subwoofer 1 (-) circuit.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Radio Amplifier in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
