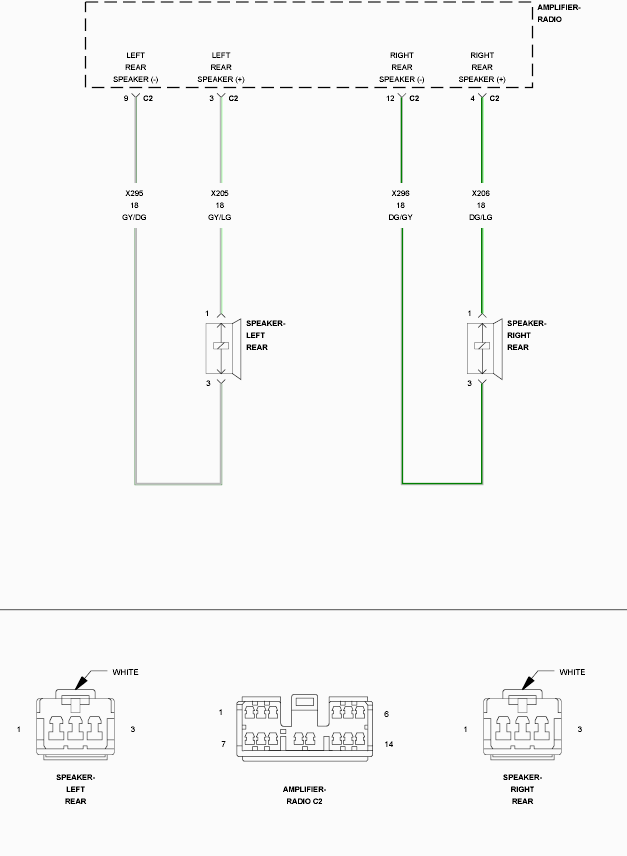

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> (Audio System (Amplifier) - Electrical Diagnostics) >> DTC Troubleshooting >> B147A-Channel 6 Audio Speaker Output Circuit Low >> Circuit Schematic
