Diagnostic Test

CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.
  NOTE: A front door must remain open whenever checking or erasing Amplifier DTCs.
2. With the scan tool, record and erase the Amplifier DTCs.
3. With the scan tool, reset the amplifier.
4. Turn the radio on.
5. Turn the volume level to 25.
6. Adjust the speakers to the front and center.
7. With the scan tool, read the active Amplifier DTCs.
  Does the scan tool display active: B1469-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER?

  Yes
  - Go to step 2
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE OPERATION OF THE RIGHT INSTRUMENT PANEL SPEAKER

Fig 1: Checking Operation Of Right Instrument Panel Speaker
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Right Instrument Panel Speaker harness connector.
3. Measure the resistance of the speaker between the two terminals.
  NOTE: The graphic shows the connector for reference only. Measure between the speaker terminals.

  Is the resistance of the speaker less than 1 Ohm?

  Yes
  - Replace the Right I/P Speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
CHECK THE (X208) RIGHT I/P SPEAKER (+) CIRCUIT FOR A SHORT TO THE (X298) RIGHT I/P SPEAKER (-) CIRCUIT

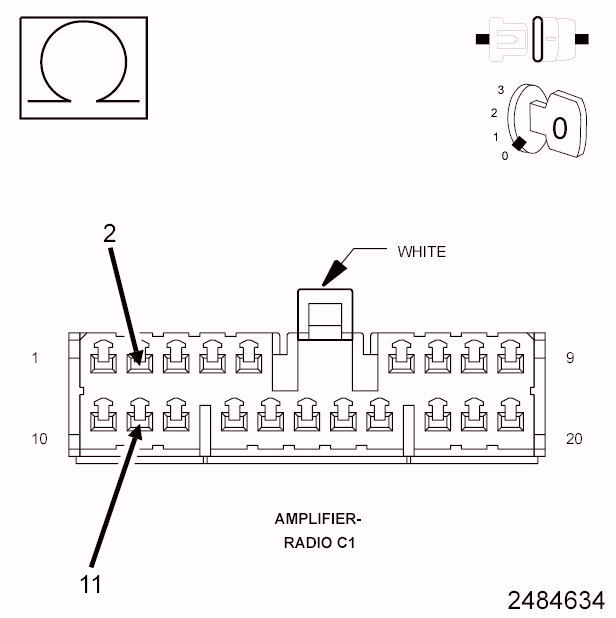

Fig 2: Checking Right I/P Speaker (+) Circuit For A Short To Right I/P Speaker (-) Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the Amplifier C1 harness connector.
2. Measure the resistance between the (X208) Right I/P Speaker (+) circuit, and the (X298) Right I/P Speaker (-) circuit.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (X208) Right I/P Speaker (+) circuit for a short to the (X298) Right I/P Speaker (-) circuit.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Amplifier in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
