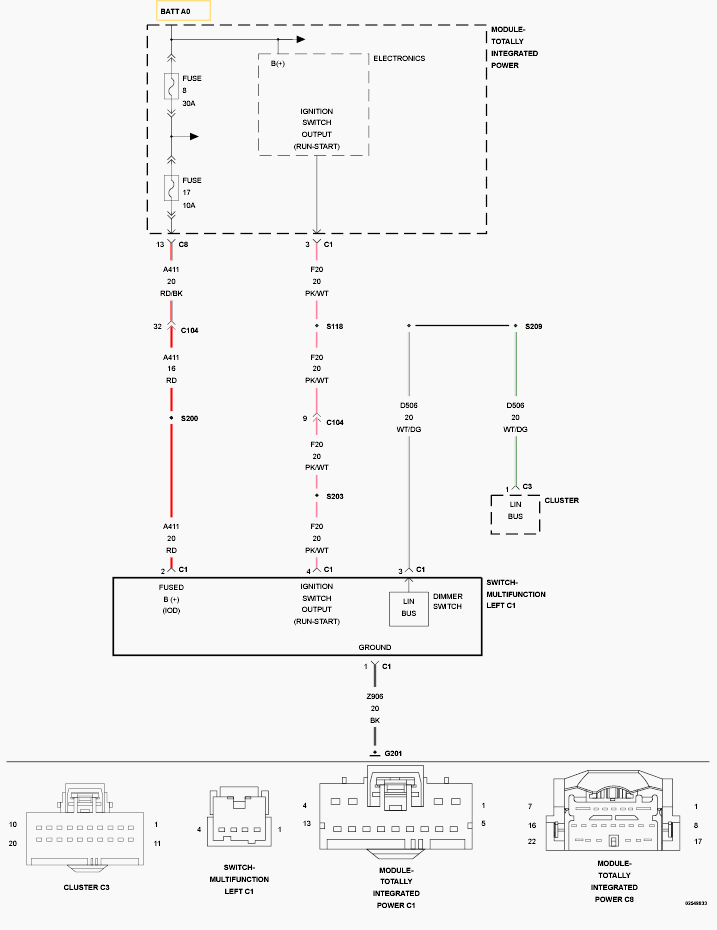

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> (Cabin Compartment Node (CCN) - Electrical Diagnostics) >> DTC Troubleshooting >> U1149-Lost Communication With MULTIFUNCTION Switch >> Circuit Schematic
