Clutch Starter Interlock and Upstop Switch - Removal

LHD





1. Disconnect and isolate battery negative cable.

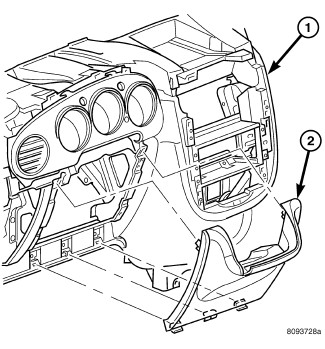

2. Remove left lower instrument panel bezel (2).

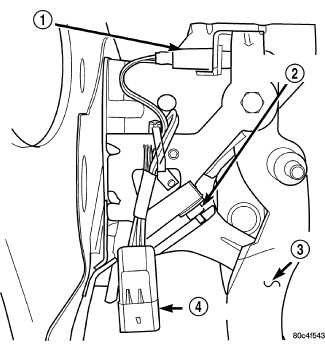

3. Disconnect interlock switch and brake lamp switch connectors.
4. Disconnect clutch master cylinder rod from clutch pedal pin. Inspect plastic retainer upon removal. If retainer is damaged, it MUST be replaced.

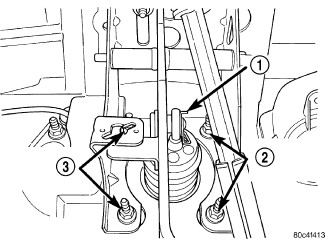

5. Remove brake booster push rod retaining clip (1) from brake pedal. Disengage rod from pedal.










6. Remove two pedal assembly bracket to instrument panel nuts.
7. Remove four brake booster/pedal bracket-to-dash panel nuts.
8. From under the hood, pull brake master cylinder/booster far enough forward to obtain pedal to bracket stud clearance.

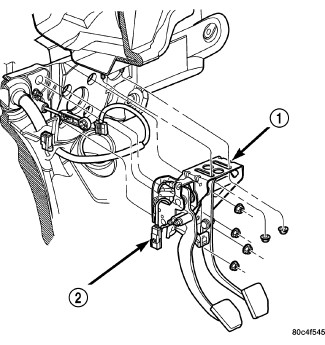

9. Remove the pedal bracket assembly (1).
.









10. Remove pedal pivot shaft and remove brake and clutch pedals (3).
11. Remove the interlock/upstop switch assembly (1,2) from the brake/clutch pedal bracket assembly by depressing the four plastic wing tabs on each switch.
