Rear Suspension Jounce Bumper - Installation

INSTALLATION

CAUTION: Do not use any type of lubricant to aid in jounce bumper installation. Premature jounce bumper failure issues could result.

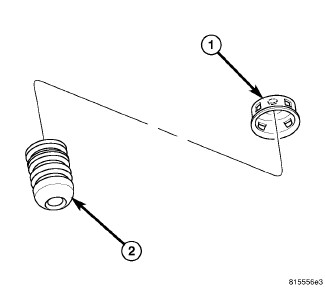

1. Carefully twist and push the jounce bumper (2) into the bracket (1) mounted to the body of the vehicle until it bottoms in the bracket.
2. Lower the vehicle.
